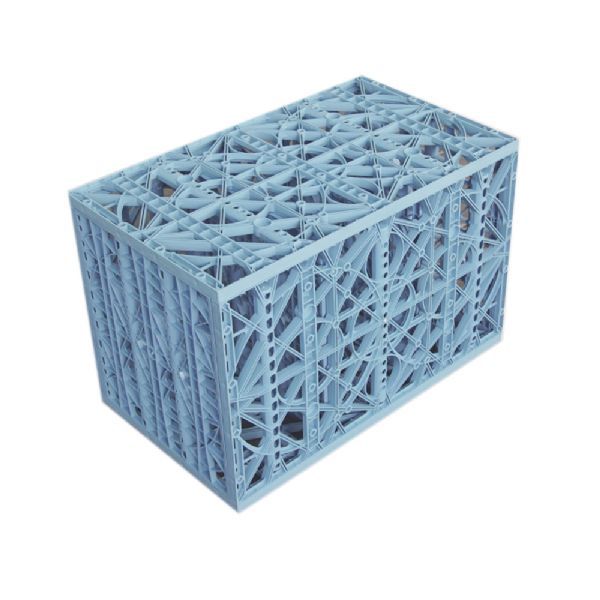

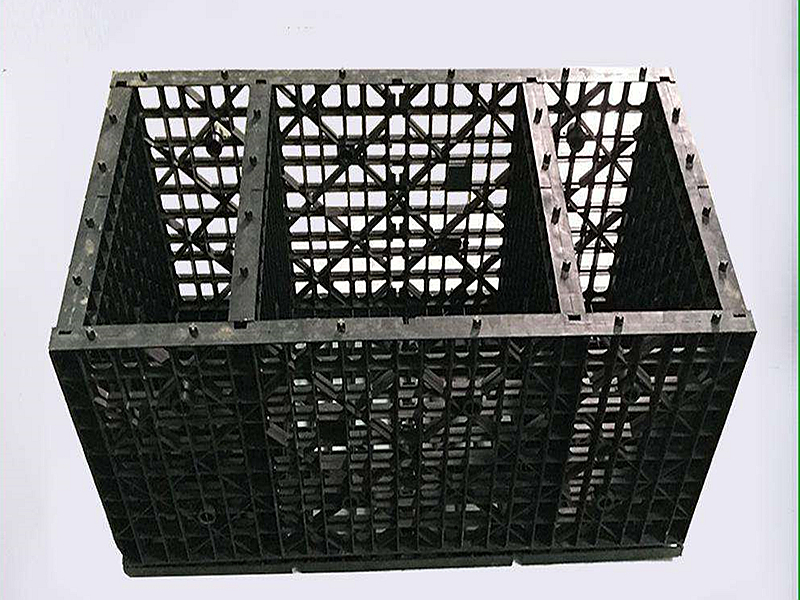

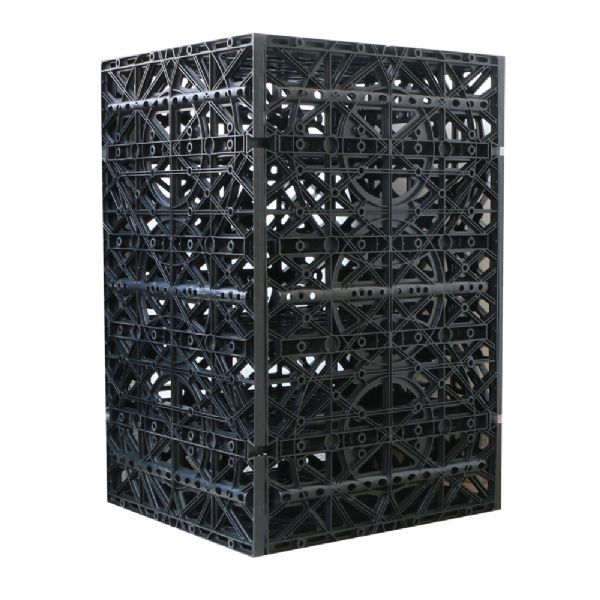

name： Rainwater Harvesting Module#BZ-8053

                                          Size：long-800mm,wibe-490mm,high-530mm

                                          Load Capacity: 25T-28T/m²

                                          Tanks: 5 tanks/cbm

                                          Void ratio: 95%

                                          Water Storage: 193L/tank

                                          Weight: 12.7kg/tank

                                         color: black，gray，Can be customized

                                         material: 100% Recycled PP, or Virgin Materials

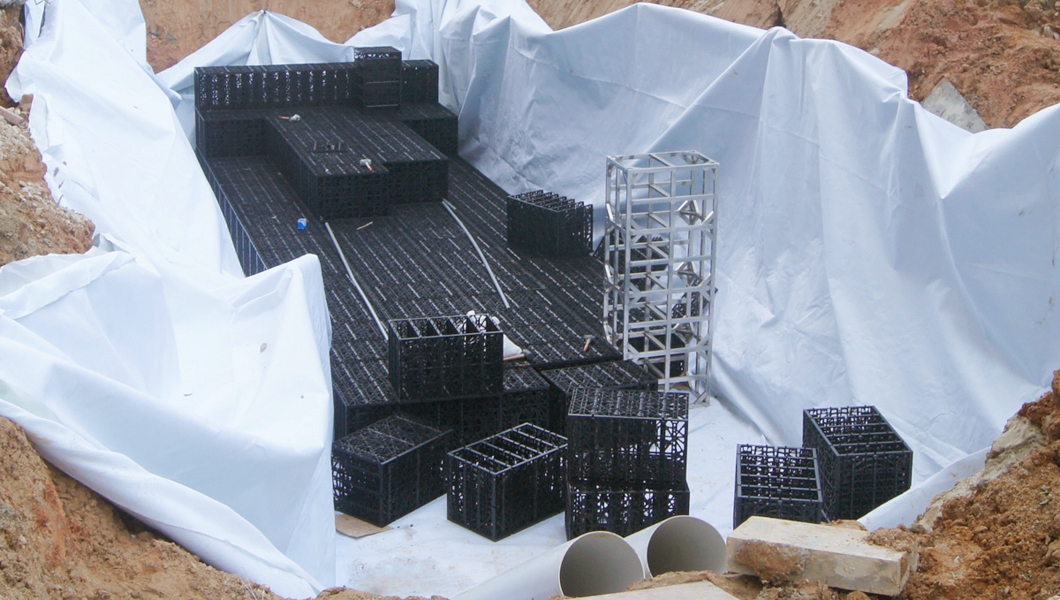

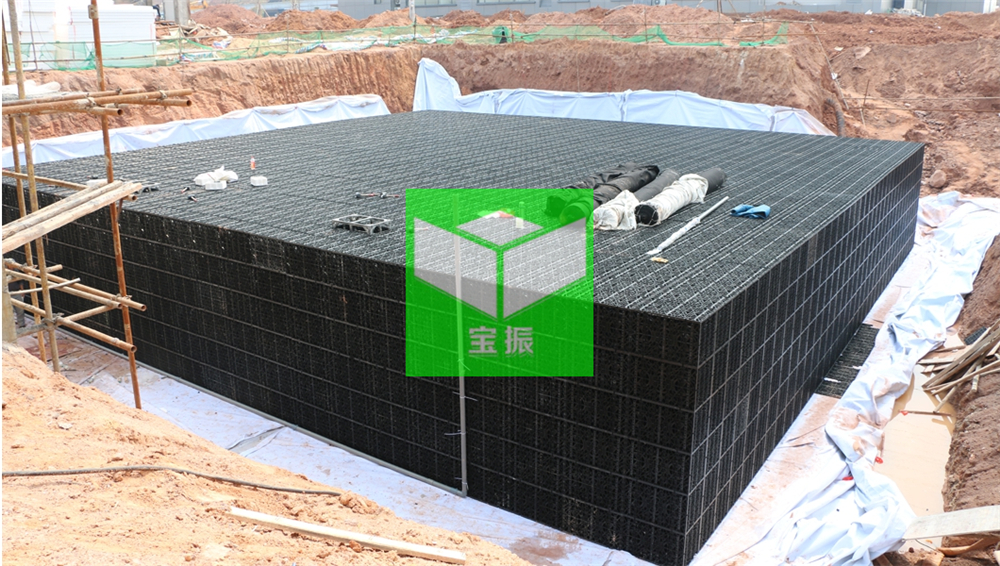

Rainwater Retention, Attenuation and Infiltration

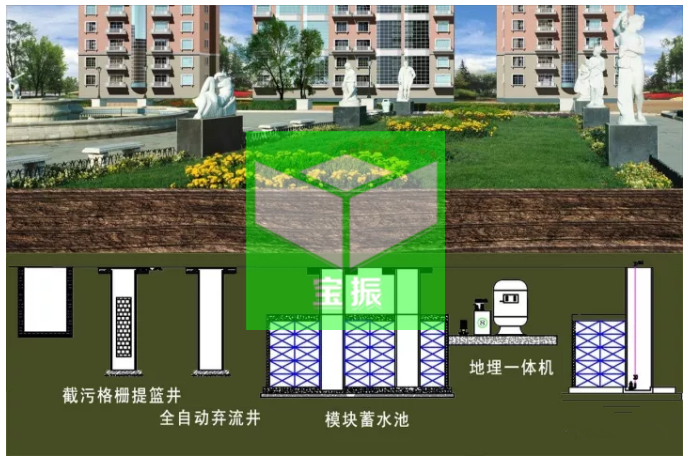

The Stormwater Drainage Geo-box can be mainly used for rainwater Retention, Attenuation, Infiltration. The drainage system and water storage-permeation and filtration system along side the roads, parking lot, water storage and drainage for the ecological shallow ridges, living community, factories and enterprises, municipal roads, viaducts and bridges, park and scenic spot, it will be the necessity for construction of sponge city.

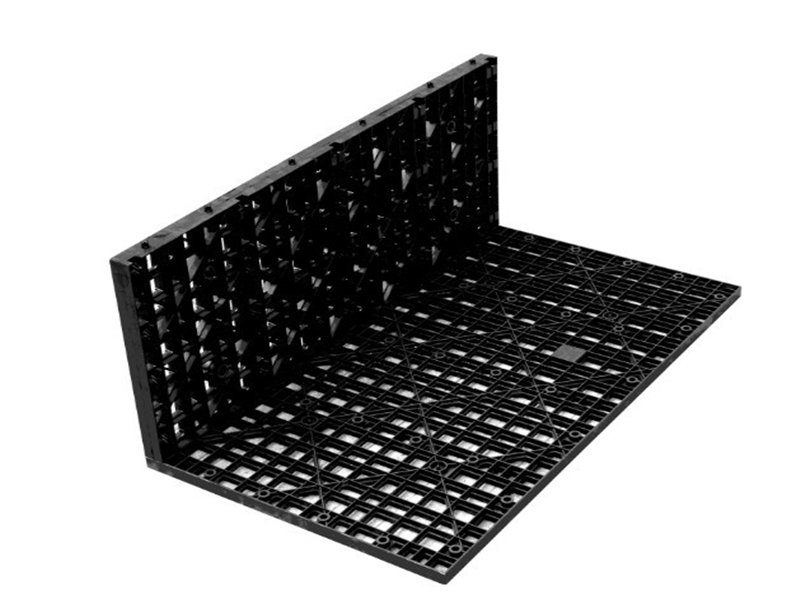

Outlines Characteristics of Modular Geocellular Units

Space saving: With underground installation, the system will not occupy valuable subaerial space.

Lower Cost: Less costly than concrete and metal storage systems.

Maximum Storage Capacity: Modular units allow flexibility of shape, ideal for narrow strips or restricted areas.

Construted Rapidly: Intallation construction simplified and minimize the construction period.

No Later Maintenance: Barely no post-maintenance after installation.
